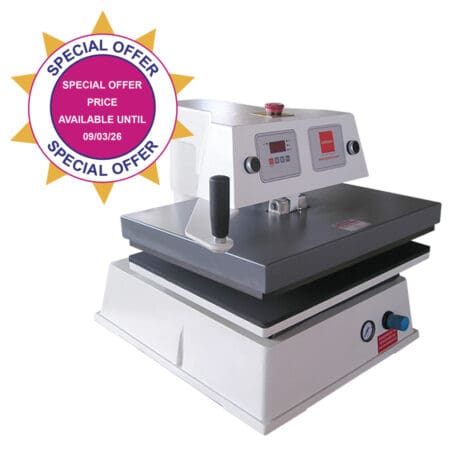

The Omega Series 1000 is a pneumatically operated double-headed heat press for transfer printing and material fusing. It is ideal for very high volume production with low operator fatigue.

Benefits include user comfort and ease of operation, while maintaining consistent pressure control.

Controls:

• Computerised LED digital microprocessor control
• Digital temp./ time control
• Countdown digital timer to buzzer alarm
• Illuminated on/ off switch
• Temp./ time controller has built in facility giving error messages in the event of a fault in either the heating element or control system, thus saving time and lost production
• Air pressure dial giving precise and accurate pressure readings

Features:

• Supplied tables: 38 cm x 50 cm (15 in x 20 in)
• Optional table: 15.3 cm x 15.3 cm (6 in x 6 in) – Part No. BMC584
• Optional table: 20.5 cm x 20.5 cm (8 in x 8 in) – Part No. BMC583
• Optional table: 25.4 cm x 25.4 cm (10 in x 10 in) – Part No. BMC582
• Optional table: 30.5 cm x 30.5 cm (12 in x 12 in) – Part No. BMC581
• Optional table: 30.5 cm x 15.3 cm (12 in x 6 in) – Part No. BMC585
• Optional table: 38 cm x 38 cm (15 in x 15 in) – Part No. BMC16
• Optional umbrella table: Part No. BMC586 (Only one Umbrella table can be used at a time)

• Swing head operation for clear view of working areas
• Fully adjustable and accurate air pressure gauge control
• Locking air pressure control
• Emergency stop button
• Heat plates will not operate until directly over table
• Self adhesive silicone base pad
• Adjustable pressure pads to ensure correct pressure settings
• Minimal space requirement
• Manufactured and tested to comply with EC safety regulations. CE labelled
• 12 month heat element guarantee
• 12 month warranty on machine
• Full service/ spares support
• Manual supplied illustrates electrical wiring diagrams, exploded diagram and parts list
• Full safety instructions
• Thermal cut out on the heating element shuts off power to the elements if the temperature exceeds 235ºC +/- 15ºC (455ºF +/- 27ºF)
